Product No.
8000-1-00182
Model No.
YWF.A4T-500S-5FⅠV01
Material No.
2000403041
Fan type
Axial fan
ErP data
Nominal data
Curves

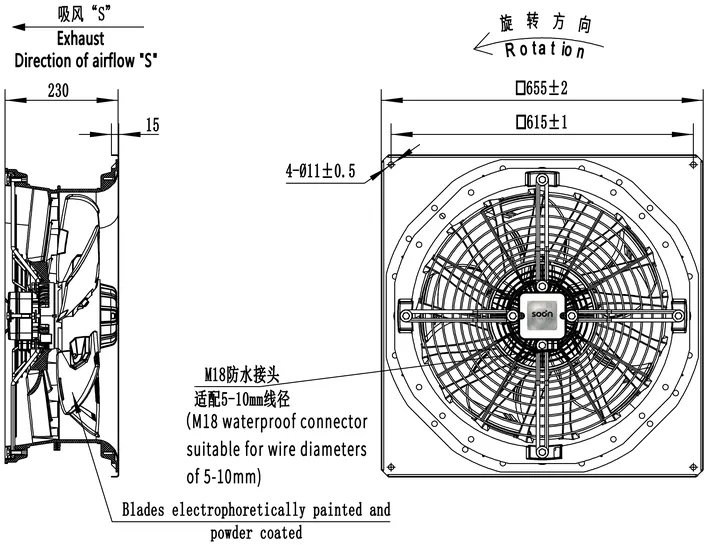

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 38.8% |
| b) Fan efficiency η required | 38.0% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 50.8 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 0.722 kW |
| g) Volume flow rate qv at BEP | 5584 m³/h |
| g) Pressure difference Δp at BEP | 1384 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | |
| l) Fan speed rpm at BEP | 180 rpm |
| m) Specific ratio | 1.002 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000403041 YWF.A4T-500S-5FⅠV01 |
Basic Parameters
| Voltage Input | Three-phase AC |
| Voltage (V) | 220/230 |
| Power (W) | 620.0 |
| Speed (RPM) | 1410 |
| Diameter Φ (mm) | 497 |
| Frequency(Hz) | 50 |
| Current(A) | 2.5 |
| Capacitor(μF) | / |
| Noise(dB) | 70 |
| Ambient Temperature(℃) | -40/60 |
Product Information
| Blades Material | Cast aluminum |
| Ingress Protection Rating | IP54 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 1384 | 722.2 | 2.65 |
| 2 | 1385 | 711.5 | 2.63 |
| 3 | 1386 | 707.0 | 2.61 |
| 4 | 1388 | 702.0 | 2.6 |
| 5 | 1391 | 680.7 | 2.57 |
| 6 | 1394 | 671.1 | 2.55 |
| 7 | 1395 | 652.1 | 2.52 |
| 8 | 1399 | 645.9 | 2.49 |
| 9 | 1402 | 628.4 | 2.46 |
| 10 | 1403 | 614.7 | 2.44 |
