Product No.
8000-1-01355
Model No.
YWF.A4S-400S-5FⅠA01
Material No.
2000408516
Fan type
Axial fan
ErP data
Nominal data
Curves

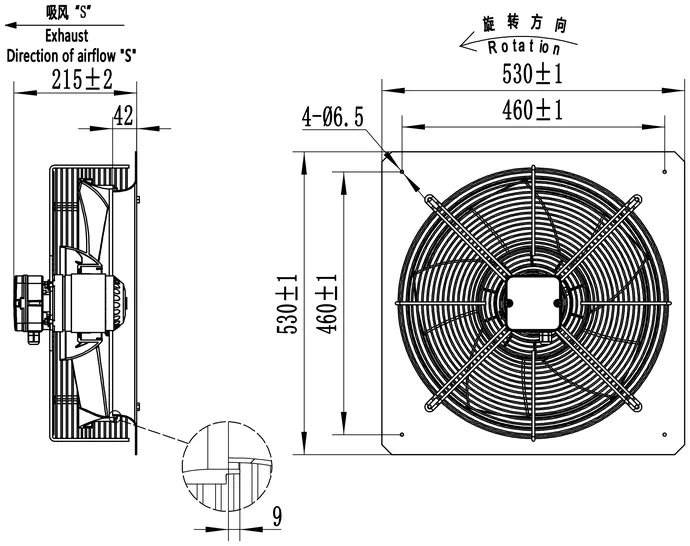

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 37.4% |
| b) Fan efficiency η required | 33.1% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 54.3 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 0.244 kW |
| g) Volume flow rate qv at BEP | 2751 m³/h |
| g) Pressure difference Δp at BEP | 1353 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | ■ impeller ■ electric motor ■ inlet ring ■ terminal box ■ guide grid |
| l) Fan speed rpm at BEP | 103 rpm |
| m) Specific ratio | 1.001 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000408516 YWF.A4S-400S-5FⅠA01 |
Basic Parameters
| Voltage Input | Single-phase AC |
| Voltage (V) | 220/230 |
| Power (W) | 200.0 |
| Speed (RPM) | 1410 |
| Diameter Φ (mm) | 437 |
| Frequency(Hz) | 50 |
| Current(A) | 0.94 |
| Capacitor(μF) | 7 |
| Noise(dB) | 58 |
| Ambient Temperature(℃) | -30/60 |
Product Information
| Blades Material | Plastic |
| Ingress Protection Rating | IP54 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CCC,CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 1341 | 256.1 | 1.18 |
| 2 | 1344 | 252.5 | 1.16 |
| 3 | 1351 | 246.0 | 1.14 |
| 4 | 1355 | 243.0 | 1.13 |
| 5 | 1364 | 238.0 | 1.1 |
| 6 | 1366 | 233.3 | 1.09 |
| 7 | 1380 | 220.7 | 1.04 |
| 8 | 1391 | 208.1 | 1.0 |
| 9 | 1403 | 196.4 | 0.95 |
| 10 | 1414 | 183.7 | 0.9 |
