Product No.
8000-1-01312
Model No.
YWF.A4T-500S-5FⅠA05
Material No.
2000403460
Fan type
Axial fan
ErP data
Nominal data
Curves

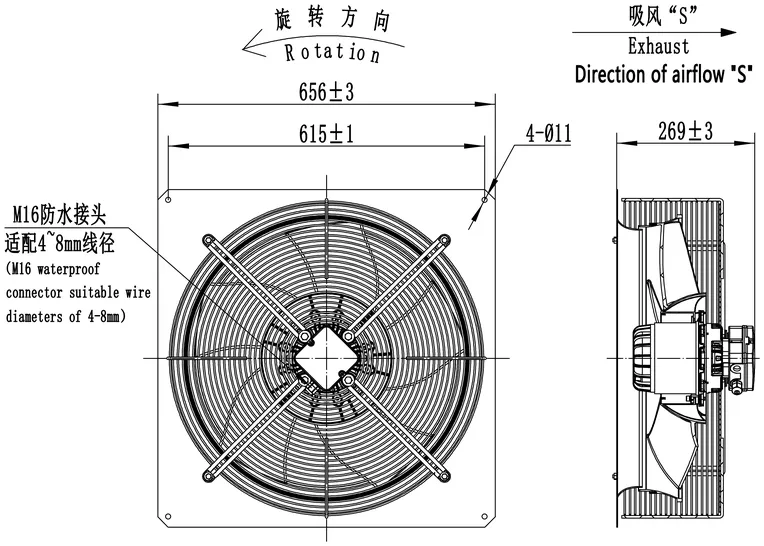

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 44.1% |
| b) Fan efficiency η required | 38.5% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 55.6 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 0.795 kW |
| g) Volume flow rate qv at BEP | 6126 m³/h |
| g) Pressure difference Δp at BEP | 1401 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | ■ impeller ■ electric motor ■ guide grid ■ inlet ring ■ terminal box |
| l) Fan speed rpm at BEP | 178 rpm |
| m) Specific ratio | 1.002 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000403460 YWF.A4T-500S-5FⅠA05 |
Basic Parameters
| Voltage Input | Three-phase AC |
| Voltage (V) | 380/400 |
| Power (W) | 650.0 |
| Speed (RPM) | 1420 |
| Diameter Φ (mm) | 559 |
| Frequency(Hz) | 50 |
| Current(A) | 1.68 |
| Capacitor(μF) | / |
| Noise(dB) | 65 |
| Ambient Temperature(℃) | -30/60 |
Product Information
| Blades Material | Plastic |
| Ingress Protection Rating | IP54 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CCC,CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 1398 | 815.8 | 1.82 |
| 2 | 1398 | 813.6 | 1.81 |
| 3 | 1401 | 796.4 | 1.8 |
| 4 | 1405 | 777.7 | 1.78 |
| 5 | 1404 | 766.0 | 1.77 |
| 6 | 1406 | 755.0 | 1.76 |
| 7 | 1407 | 734.5 | 1.75 |
| 8 | 1414 | 709.8 | 1.73 |
| 9 | 1420 | 655.1 | 1.68 |
| 10 | 1430 | 601.3 | 1.64 |
