Product No.
8000-1-00028
Model No.
YNF.A6T-850S-4FⅠAV6
Material No.
2000402743
Fan type
Axial fan
ErP data
Nominal data
Curves

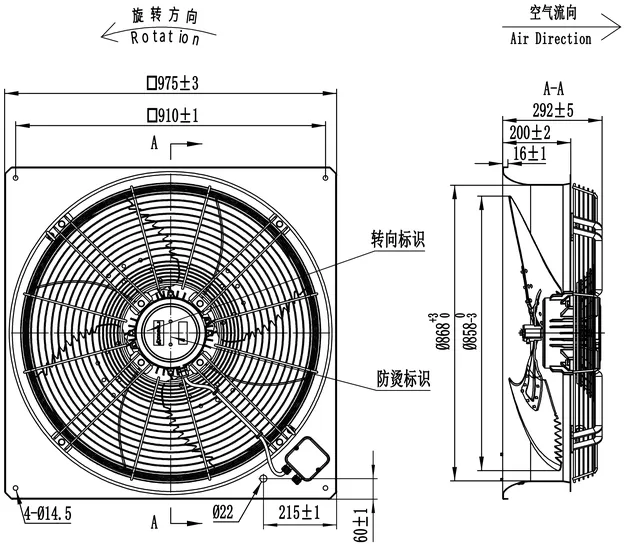

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 42.6% |
| b) Fan efficiency η required | 42.1% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 50.5 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 1.767 kW |
| g) Volume flow rate qv at BEP | 18068 m³/h |
| g) Pressure difference Δp at BEP | 948 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | ■ impeller ■ electric motor ■ guide grid ■ stator ■ terminal box |
| l) Fan speed rpm at BEP | 140 rpm |
| m) Specific ratio | 1.001 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000402743 YNF.A6T-850S-4FⅠAV6 |
Basic Parameters
| Voltage Input | Three-phase AC |
| Voltage (V) | 380/400 |
| Power (W) | 2000.0 |
| Speed (RPM) | 931 |
| Diameter Φ (mm) | 860 |
| Frequency(Hz) | 50 |
| Current(A) | 4.0 |
| Capacitor(μF) | / |
| Noise(dB) | 72 |
| Ambient Temperature(℃) | -30/60 |
Product Information
| Blades Material | Aluminum alloy |
| Ingress Protection Rating | IP55 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 940 | 1932.4 | 3.98 |
| 2 | 943 | 1867.9 | 3.89 |
| 3 | 948 | 1767.1 | 3.76 |
| 4 | 952 | 1675.1 | 3.65 |
| 5 | 955 | 1612.0 | 3.59 |
| 6 | 957 | 1551.9 | 3.52 |
| 7 | 962 | 1423.7 | 3.36 |
| 8 | 965 | 1380.8 | 3.31 |
| 9 | 967 | 1289.9 | 3.22 |
| 10 | 970 | 1194.0 | 3.11 |
